Max – HD Series Holding Filter Cartridges


Max – High Dirt Holding Filter Cartridges are constructed with melt-blown polypropylene media, and provide a large surface. It offers a high dirt holding capacity with low initial differential pressure.

Our Max HD series filter cartridge has a larger diameter compared to usual pleated cartridges (external diameter 165mm, internal diameter 65mm) and can reach up to an effective filtration area of 20 m2 and a holding capacity of 20 kg. To ensure the integrity of the element, it uses high-performance polypropylene as protective cover as the fiber is stable and does not fall off easily, resists pressure easily and the sealing point uses Double-O opening, sealed airtight, without any side leakages.

Product Specifications

Product Specifications


Max. Operating Pressure Difference : 3.5kg/cm2 @30℃.

Max. Operating Temperature : 80℃.

Outer Diameter : 165 mm.

Inner Diameter : 65 mm.

Nominal lengths : 20”, 40”, 60”(508, 1016, 1524 mm).

Material : Melt-blown polypropylene.

Core, caps, inner core : Polypropylene.

O-rings / Gaskets : Buna N, Silicone, EPDM, Viton.

Retention ratings : 1, 2, 5, 10, 25, 40, 70 μm.

Product Features


It is made of pure polypropylene and has excellent chemical resistance, with no additive.

Horizontally foldable mode and big size design make filtering area of each cartridge reach 20m2.

High filtering accuracy and long service life.

Oversized diameter (outer 165mm, inner 65mm) greatly increases the filtering flow rate of one cartridge and maximum pollutants holding capacity is 20kg.

High strength polypropylene sleeves are adopted for supporting inside and outside and fixed fiber has a high compressive strength and does not tend to fall.

Double O-rings design ensures good sealing performance without side leakage.

Especially suitable for super high pollutants holding capacity cartridge filter (3LC/3GC) professionally designed by Feature-tec.

Technical Data

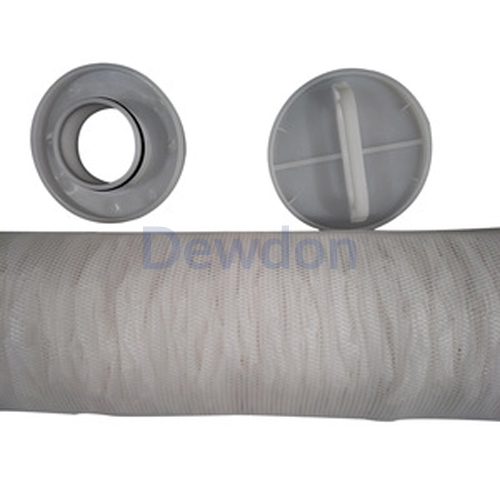

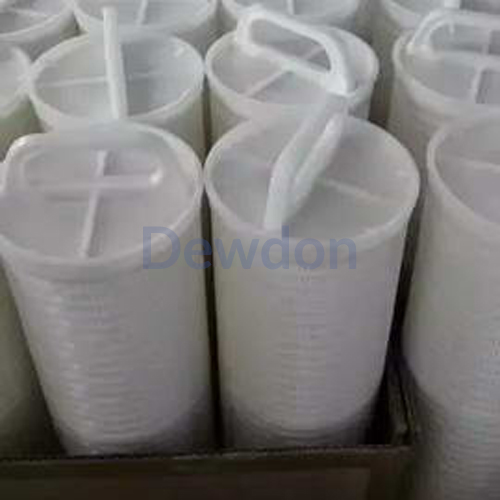

Products Show

Application

Water treatment

Food & beverages

Amine filtration

Plating solutions

Microelectronics

Pharmaceuticals

Fuel oils

Chemicals and many more
