Dewdon - Evaporative Cooler Panels
All Products

Evaporative Cooler Panels

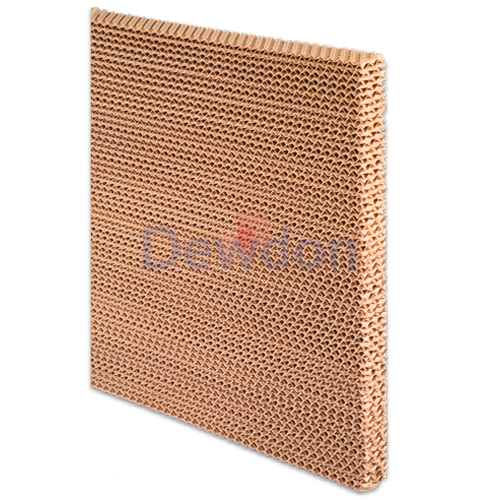

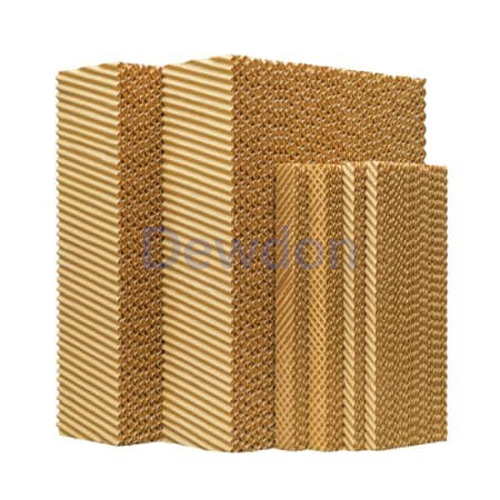

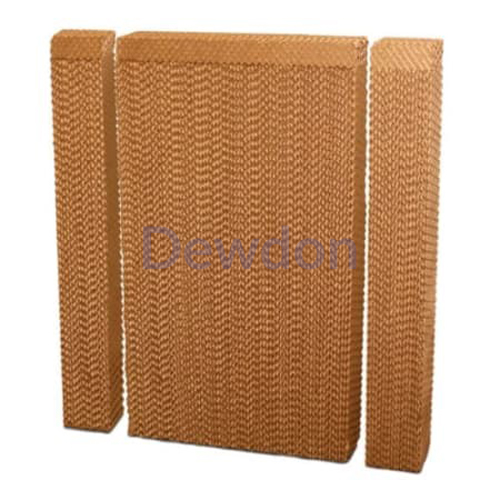

The Evaporative Cooler Panels are made from corrugated, wavy cellulose sheets glued together and treated with anti-rot agents and non-toxic resins.These Evaporative Cooling pads provide superior cooling power due to their unique design, high absorbability, high water-resistance, anti-mildew and long service life, since are easy to clean and will last for many years with proper yearly maintenance.

The Evaporative Cooling Pads work through the exchange of energy between water and air:

The water is distributed uniformly over the entire surface of the panel;

The energy required for the evaporation of water is taken from the air that passes through the evaporator panels;

The air in this way loses part of its temperature and is then humidified and cooled.

The panels have excellent efficiency, low operating costs and low load losses.

The Evaporative Cooler Panels are mainly used for humidification and air cooling in air conditioners, but also used in agricultural buildings like greenhouses and animal enclosures (poultry house, swine, barns, pens).

Evaporative Cooling Pads are also a replacement media for evaporative cooling equipment like Champion / Essex, Adobe, and Phoenix Aero cool, and leading portable evaporative cooler brands like Port-A-Cool units.

Products Specification

Product Specifications


Whole casing made of plastic.

Cooling pads made of Polypropylene.

Thickness cooling pads: 150 mm.

Width cooling pads: 600 mm.

Height cooling pads: up to max. 2400 mm.

Modular construction up to max 24m width per pump.

Apart from manufacturing the fans for various applications.

Environ tech markets the cell deck cooling pad, made by various companies in India and abroad and is well established with respect to poultry, horticulture (green house) and industrial applications. The evaporative cooling pad (ecp) made of cell deck cooling pad paper is engineered from cross-sectional, specially treated flute media capable of absorbing and retaining water to provide the maximum cooling efficiencies.

The cell deck cooling pad media is treated with stiffening and wetting agents to provide the cooling, without any water carryover.

The pads are designed for tropical and subtropical countries, ensures greater performance during summer seasons.

The pad media is treated with anti-rot and rigidifying resins.

The media is cross- corrugated to maximize the mixing of air and weather.

Saturation effectiveness ranging from 50 to 98% can be achieved depending upon air velocity and depth of the cooling pad.

Air flows horizontally, while the re-circulating water flows vertically, through the pad.

The water is collected at bottom of the pad and is re-circulated again by a pump through the unique gutter system made of g. I. Sheet

Product Features


Premium quality

Finely finished

Durability

Technical Details

Products Show

Application

Live stocks

Greenhouses

Gas Turbine

Pre Cooler For Air Cooled Condenser

Spray Painting Booth

Industrial Applications

Commercial Applications

Humidification.
