Dewdon - Top Loader Pleated Bag - High
All Products

Top Loader Pleated Bag - High

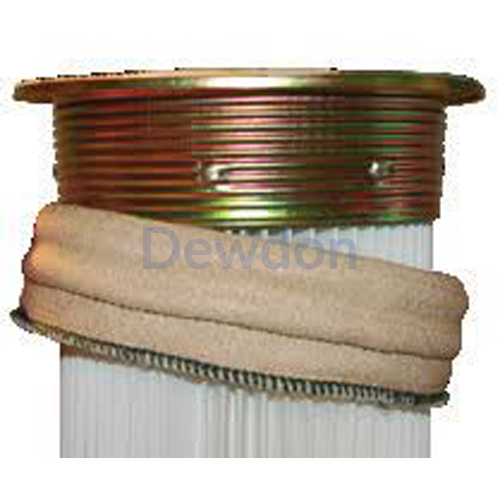

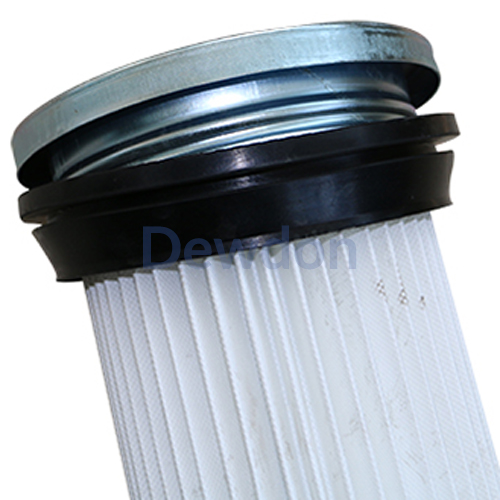

Our Top Loader pleated bag cartridge provides an alternative to conventional filter bags providing increased airflow. Dewdon’s top loader cartridges can be installed in existing baghouse dust collectors by way of easy clean side installation.

Our Top Loader cartridge can be equipped with different high quality filter media’s making it suitable for various industries and dust types, including abrasive, toxic and explosive dust.

Products Specification

Item Material (Standard)
Top Cap Galvanized steel
Snap ring Needle felt
Inner mesh Galvanized steel / stainless steel
Outside straps(optional) High temp,Ryton
Bottom cap Galvanized steel / stainless steel
Potting compound High temperature polyurethane
Filter media 100% filament spinning spun bonded polyester

Product Features


Top and bottom of the structure of special polyurethane Perforated galvanized steel or stainless steel net 100% filament spinning clay polyester filter media Continuous operating temperature: 107 ºC Tube sheet hole thickness: About 5mm Rubber ring or silicone ring for food industry No metal parts touch with the dusty gas Optional after-treatment: PTFE, anti-static, waterproof and anti-oil treatment.

Technical Data

Products Show

Application

Cement

Food & Beverage

Wood

Metal

Laser Cutting

Sand blasting

Textile and so on
