Dewdon - Conical & Cylindrical Cartridges
All Products

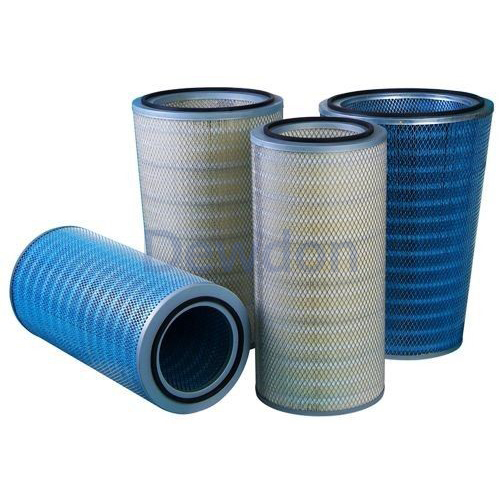

Conical and Cylindrical Filter Cartridges


Cylindrical and conical filter cartridges are designed especially for the high demands in gas turbine air filtration systems. Dewdon’s special filtration media provides the maximum protection for the turbine and through the outstanding durability and high efficiency of the filter media.

We designed specifically for use in self-cleaning (pulse) gas turbine inlet air systems which provides exceptionally low pressure drop at high efficiency levels (98%). Dewdon’s filter cartridges provide an optimized ratio between filtering area, fold depth and number of folds for high dust holding capacity Zinc coated, moisture resistant expanded metal cartridge protects against rust and corrosion.

Products Specification

Item Material (Standard) Material (Alternative)
Filter Media Cellulose/Synthetic fiber/ All kinds of H&V air filtration`s filter
Nano fiber/Polyester fiber Media Selection
Top cap/ Galvanized steel Stainless steel, Color-coated steel/
Bottom Cap Recyclable Plastic ABS
(Open/Closed)
Gasket EPDM Urethane/Silicone
Inner Mesh Galvanized steel
Stainless Steel, Color-coated steel/
Recyclable PP
Outer Mesh
Galvanized steel with Stainless Steel, Color-coated steel
hotmelt glue Recyclable plastic ABS
Finishing Treatment
Teflon-coating, waterproofing, oil proofing, Flame-retarding
Treatment, Antistatic Coating, etc

Product Features


Imported special air filter, large filter area.

Electro-galvanized end caps not rust.

Electro-galvanized diamond mesh central skeleton, high opening rate.

Professional sealing obturator elastic neoprene.

Operating temperature ≤65°C.

Wide pleat height.

Ultra-high efficiency: 99.99%.

Large amount of ventilation.

Technical Data

Products Show

Applicable Area

Applicable to Gas turbines

Compressors

Sandblasting

The Tobacco Roll Wiring

Fly Ash
