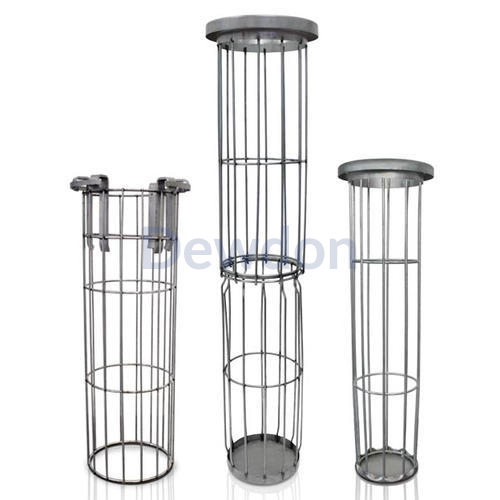

Dust Collector Filter Bag Cags


Our dust collector cages can be made to fit existing collectors from any baghouse manufactures such as Astek, Gencor, Flexkleen, Mikropul, Wheelabrator, etc. We can also manufacture uncommon and specialized cage designs as required.

Cage constructions typically consist of 10, 12 or 20 vertical wires. The horizontal ring spacing on the cage can be 4″, 6″ or 8″. If plenum height restrictions are a problem, two piece cages are available in popular “twist-lock” or “fingers” styles. For areas where moisture or acid corrosion present we can provide a range of materials, often galvanized steel or stainless steel. Top load baghouse cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4″ to 6 1/8″. Wire thickness ranges are; 9 gauge, 10 gauge and 11 gauge. Cages for bottom load baghouses are constructed with a split collar or split ring top. Cage diameters range from 4″ to 6 1/8″. Wire thickness ranges are 9 gauge, 10 gauge and 11 gauge.

For more efficient cleaning, Venturi are available for all diameter cages. Venturi come in 3″ to 6″ lengths. Venturi are made in a variety of materials including; aluminum, carbon steel, galvanized and stainless steel.

Product Specifications

Materials / Finishes


Carbon Steel/Mild Steel

Galvanized Steel

304 Stainless Steel

316 Stainless Steel

Epoxy Coated (High Temp <325°)

Inconnel 600 or 601

Vertical Wires and Wire Gauges


10, 12, and 20 vertical wires most common 5, 6, 8, 16 and 24 also available.

10, 11, and 12 gauge wire most common 7, 9, and 13 also available

Sizes


Common diameters: 4″ – 6-1/8″ (fits most baghouse OEMs)

Common lengths: 6′ – 12′ (shorter/longer lengths also available)

Cage Shape


Round (most common)

Oval

Envelope

Cage Top Styles


Rolled Flange (Turned Down Flange) – Most Common Top Load Style

Split Collar (Rolled Band) – Most Common Bottom Load Style

All Wire

Split Ring

Cage Bottom Styles


Welded – Most Common

Crimped

Snap

Wire Formed

Additional Options


Venturi : Aluminum, carbon steel, galvanized or stainless steel

Technical Specifications

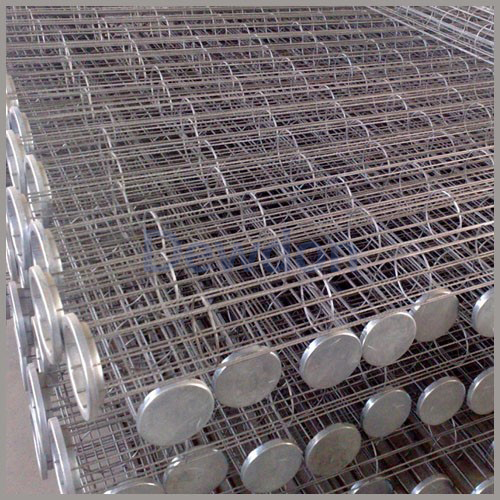

Products Show

Applications

Food And Beverages

Chemicals

Pharmaceuticals

Petrochemicals
