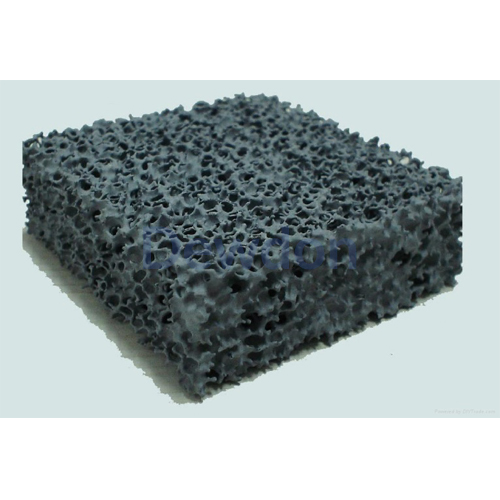

Silicon Carbide (SiC) Ceramic Foam Filters


Silicon Carbide Ceramic Foam Filters mainly for filtration of cast iron and non-ferrous alloys. With their excellent resistance to attack and corrosion from molten iron liquid, they can effectively remove inclusions, reduce trapped gas from liquid metal and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.

Products Specification

Features


Precise sizes control during filter media sponge cutting to final sinter.

High strength with enough slurry and free from loose debris, no break and no filter slag.

Branded main raw material to ensure stable quality.

Good porosity and free from block during pouring molten metal.

Mature sintering technology to ensure high refractory and good thermal shock resistance.

Product Specification


Porosity > 80 - 87%
Pores distribution 4 - 50 PPI
Density 0.40 - 0.55 g/cm3
Operating temperature ≤ 1,500°C
Compressive strength 1.2 MPa

Products Specification

The flow capacities may vary depending on customer’s process parameters and therefore the given values are recommendation only.

The above table is standard only. We can customize the sizes depends customer requirement from 35 to 300 mm and up to a thickness of 50 mm.

Dimensions [mm] Areas [cm2] Total flow Capacity [kg] Numbers
GJL/GJM max. 4 kg/cm2 GJS max. 2 kg/cm2 SIMO/Ni-Resist/D5 max. 1 kg/cm2 Cartons Pallets
Filter height 15 mm
35 x 35 12.25 49 25 12 1,540 64,680
40 x 40 16 64 32 16 1360 57,120
50 x 50 25 100 50 25 880 36,960
55 x 55 30.25 121 60 30 600 25,200
60 x 60 36 144 72 36 550 23,100
75 x 75 56.25 225 113 26 360 15,120
50 x 100 50 200 100 50 400 16,800
75 x 100 75 300 150 75 295 12,390
∅ 40 12.56 50 25 12 1,360 57,120
∅ 50 19.63 78 39 19 880 36,960
∅ 60 28.26 113 56 28 550 23,100
∅ 75 44.16 177 88 44 360 15,120
Filter height 22 mm
35 x 35 12.25 49 25 12 990 41,580
35 x 50 17.5 70 35 17 790 33,180
40 x 40 16 64 32 16 900 37,800
50 x 50 25 100 50 25 600 25,200
50 x 75 37.5 150 75 37 390 16,380
50 x 100 50 200 100 50 280 11,760
55 x 55 30.25 121 60 30 390 16,380
60 x 60 36 144 72 36 400 16,800
75 x 75 56.25 225 113 56 220 9,240
75 x 100 75 300 150 75 190 7,980
100 x 100 100 400 200 100 150 6,300
100 x 125 125 500 250 125 120 5,040
100 x 150 150 600 300 150 90 3,780
125 x 125 156.25 625 312 156 70 2,940
∅ 40 12.56 50 25 12 900 37,800
∅ 50 19.63 78 39 19 600 25,200
∅ 60 28.26 113 56 28 400 16,800
∅ 70 38.47 154 77 38 300 12,600
∅ 75 44.16 177 88 44 220 9,240
∅ 80 50.24 201 100 50 230 9,660
∅ 90 63.59 254 127 63 170 7,140
∅ 100 78.5 314 157 78 150 6,300
∅ 125 122.66 491 245 122 70 2,940
Filter height 30 mm
150 x 150 225 900 450 225 60 2,520
175 x 175 306.25 1,225 612 306 35 1,470
200 x 200 400 1,600 800 400 35 1,470
0 150 176.63 706 352 176 48 2,016
0 175 240 960 480 240 25 1,050
0 200 314 1,256 628 312 20 840
Filter height 35 mm
175 x 175 306.25 1,225 612 306 22 924
200 x 200 400 1,600 800 400 20 840
∅ 175 240 960 480 240 22 924
∅ 200 314 1,256 628 312 20 840

Technical Details

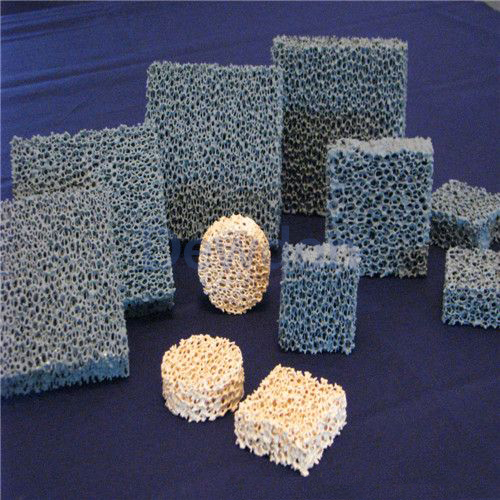

Products Show

Application

Silicon Carbide Ceramic Foam Filters mainly for filtration of cast iron and non-ferrous alloys.
