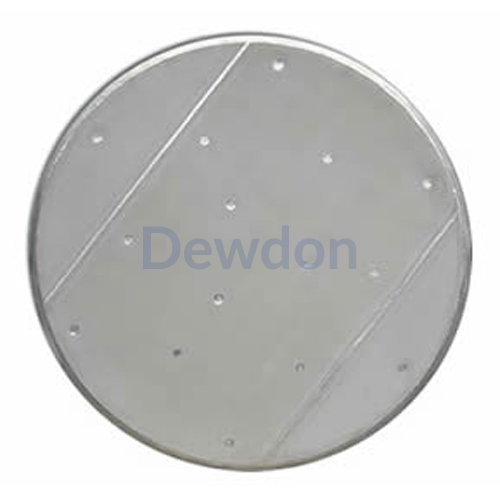

Sintered Filter Disc


Sinter filter disc made of multi-layer wire mesh is a perfect filter fittings having the function of filtering, washing, drying. The multi-layer filter is overlapped by sintering in the vacuum sintering furnace. This wire mesh overcomes the problems of the low intensity, poor rigidity, mesh instability enough, deformation easily. Its overall performance is significantly higher than sintered metal powder, ceramic, sintered metal fiber filter mat and other products.

Products Specifications

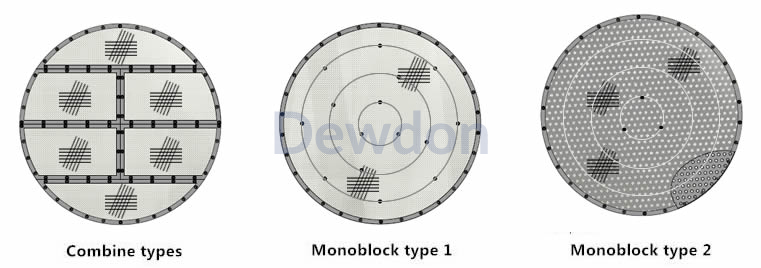

The sintered filter disc includes three types: one combine type and two monoblock types.


Combined type: filter plate and supported plate are welded together, filter pieces is connected with bolts.

Monoblock type 1: weld or use bolts to connect the filter plate and supported plate, then flange is welded to them.

Monoblock type 2: sintered directly the filter plate and perforated plate, then they are welded with flange. Complete or part of filter disc can work normally.

Product Features


Good strength.

Accurate filter rating.

Works long time.

Repeatedly cleaning and usage.

Technical Data

Products Show

Application

The sintered filter disc is widely used in the petroleum, chemical fiber, chemical, energy, aviation, security, environmental protection, medicine, electricity industry, etc.
