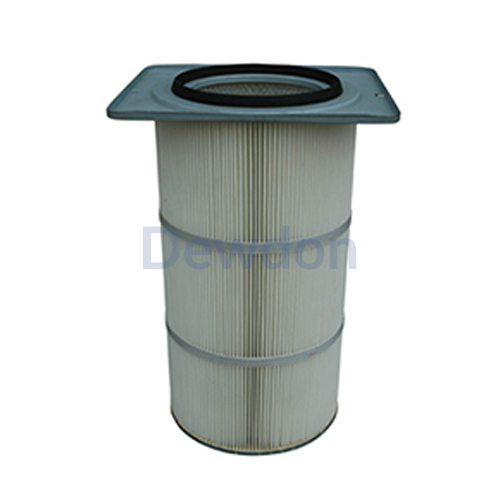

Square End Cap Filter Cartridges


Dewdon’s Square End Cap filter cartridge is designed for gas turbine air inlet housing. Our Square End Cap filters both to OEM's as replacement or aftermarket filters. The Square End Cap cartridge filter can be made using any of our high-quality pleated filter media making it suitable for various industries and dust types, including abrasive, toxic and explosive dust.

Products Specification

Item Material (Standard) Material (Alternative)
Filter Media Cellulose/ Polyester/ Synthetic All kinds of H&V air filtration`s filter
Nano fiber/ fiber Filter media at option
Top cap Galvanized Steel Stainless Steel
Closed bottom Galvanized Steel
Cap
Gasket EPDM Silicone, Urethane
Inner Mesh Galvanized steel
Outer Mesh Galvanized steel
Finishing Treatment
Teflon-coating, waterproofing, oil proofing, Flame-retarding
Treatment, Antistatic Coating, etc

Product Features


Imported special air filter, large filter area.

Electro-galvanized end caps, not rust.

Electro-galvanized diamond mesh central skeleton, high opening rate.

Professional sealing obdurate elastic neoprene.

Operating temperature ≤ 65° C.

Wide pleat height.

Ultra-high efficiency: 99.99%.

Large amount of ventilation.

Technical Data

Products Show

Applications

Except for gas turbine air inlet systems, the square flange cartridges are also ideal for air filtration of dust and fume from cement, metal/aluminum, food & beverage, woodwork, chemicals, powder coating, plasma/laser cutting, sand blasting, textiles, welding and casting.
