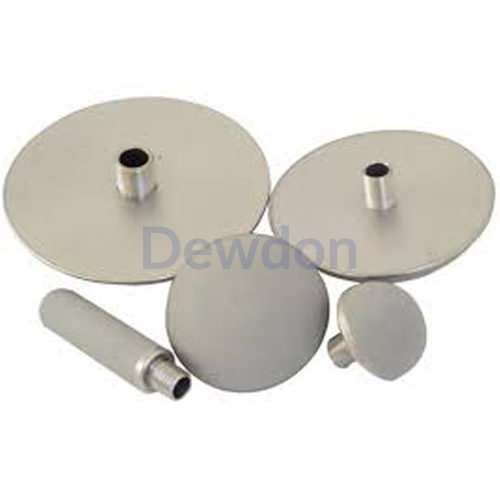

Sintered Titanium Powder Aerator


Our sintered titanium powder filter elements are made of industrial high-purity titanium powder. As a honest manufacturer, we use 99.6899% titanium powder as raw material. After sieving, cooling and isostatic pressing of the raw materials, the microfiltration elements are sintered by high temperature and high vacuum. Finished products are featured with uniform structure, small filtration resistance, high separation and purification efficiency. It is especially suitable for urban sewage, new expansion of large-scale water plants & renovation of old aeration tanks, ozone aeration in the water treatment industry and catalytic gas aeration in the chemical industry.

Products Specifications

Products Specifications


Materials: pure titanium powder (99.6899%).

Bore Diameter: 0.22–100 μm.

Porosity: 35% –50%.

Working Temperature: ≤ 280 °C.

Compressive Strength: 0.5-1.5 Mpa.

Aerator Plate

Diameter Thickness Filter Rating
100 mm, 150 mm, 180 mm. 2–5 mm. 0.22 μm, 0.45 μm, 1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, 80 μm, 100 μm.

Aerator Cylinder

Diameter Length Thickness Filter Rating
22 mm, 30 mm, 50 mm, 60 mm, 80 mm, 100 mm, 120 mm. 125 mm, 250 mm, 300 mm, 500 mm, 600 mm, 750 mm, 1000 mm. ≥1 mm. 0.22 μm, 0.45 μm, 1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, 80 μm, 100 μm, 120 μm.

Mushroom Head Aerator

Diameter Thickness Height Active Area Inlet Pipe Size Connection to Main Pipe Sealing
100 mm, 150 mm, 180 mm. 3 mm. 50 mm, 35 mm, 28 mm. 332.84 cm2, 215.09 cm2, 103.12 cm2. 4', 6'. pipe thread. omniseal, viton.

Product Features


Uniform aperture distribution, high porosity.

Small aeration bubble diameter & large gas-liquid boundary area.

High temperature resistance can be used normally below 280 °C.

Low filtration resistance, high separation and purification efficiency.

No hole blockage, good chemical stability, resistant to acid & alkali.

Good oxidation resistance, 40% lower energy consumption than conventional aerator.

Non magnetic, non-toxic, no shedding, no pollution, good biological compatibility.

Strong anti-microbial ability does not interact with microorganisms.

Good airtightness and compact structure, suitable for harsh working conditions.

Technical Data

Products Show

Application

Sintered titanium powder filter elements are widely used in urban sewage, chemical industry, petrochemical, bioengineering, pharmaceutical industry, food industry. Especially suitable for ozone aeration and other aeration works in high temperature and strong alkali conditions.
