Dewdon - Self Supported Pocket Filters
All Products

Self Supported Pocket Filters

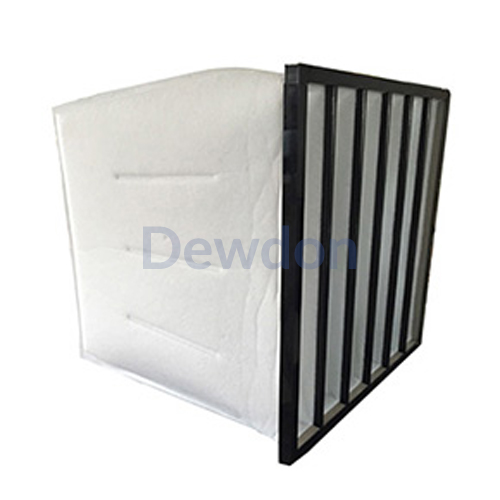

Dewdon’s Self Supported Pocket Filters are constructed to withstand extreme humidity, high velocities and turbulence and are excellent for all types of air handling systems. Self-supported filter pockets stay rigid in the air stream. The Synthetic media rated at ASHRAE 45-50% (MERV 8) and ASHRAE 60-65% (MERV 11).

Products Specification

Frame Filter Media Gasket
Extruded Aluminum/ Galvanised steel sheet / Plastic Progressively structured polyester EVA or none for plastic frame

Product Features


The filter element is free of metal parts, eliminating the risk of corrosion and punctures Corrosion-free polyurethane header ensures a leak-proof bonding of pockets to header.

Non-shedding fibers are specially designed to resist moisture and chemicals.

Progressively structured design provides exceptionally low pressure drop at high efficiency levels.

Resists all types of bacterial growth.

Technical Data

Products Show

Application

Pocket filters have been widely used in central air conditioning ventilation systems and some gas turbine air inlet systems. They are used for secondary filtration to reduce load and prolong service life of higher-efficiency air filtration systems.

Coarse and fine particle filtration, gas turbine system filtration.
