Mesh Filter Bags

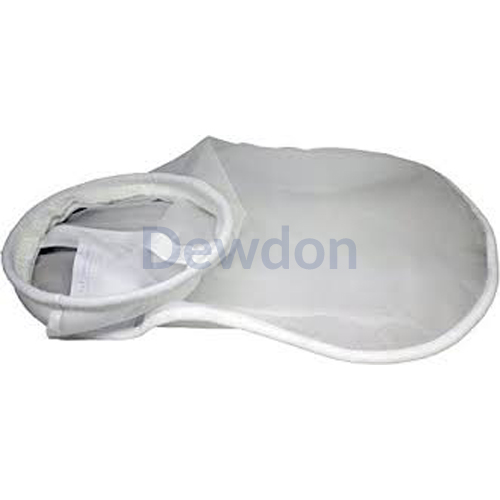

Our Mesh Filter Bags are designed for filtration applications that require a defined pore opening and/or higher strength and durability. Mesh filter bags are available in a variety of Medias, selected based on the specific parameters of your application.

Polyester multifilament media is an economical choice to remove dirt in micron ratings from 100 to 2000. For more precise applications, nylon monofilament is an excellent choice to remove dirt down to 1 micron, and polypropylene mesh provides an excellent option for chemically challenging liquids. All are available with plastic or steel rings.

Product Details

Range of Specifications
Micron Rating 25, 50, 75, 100, 125, 150, 200, 250, 300, 400, 500, 600, 800, 1000, 1200 and 1500 micron
Media polypropylene mesh, polyester mesh, nylon mesh
Configuration Plastic Ring, Stainless Steel Ring, Zinc Plated Steel Ring
Construction Materials Filter Media, PVC/Steel Rings
Filter Bag Sizing Guide
Filter Bag Size Diameter (inches) Length (inches) Flow Rate (GPM)
1 7 16.5 80
2 7 32 150
3 4 8 25
4 4 14 50
5 7.5 16 80
6 7.5 32 160
7 5.5 15 55
8 5.5 21 75

Technical Data

Products Show

Application

Soil Remediation

Fuel Polishing

Chemical Processing

Food & Beverage

Waste Water

Oil/Gas

Adhesives & Resins

Utilities

Water Processing

Lubricants, Solvents & Metalworking

Pharmaceuticals

Oil Removal/Handling

Paints, Coatings & Inks
