Pulse Jet Pleated Bag Filters


Dewdon’s Pulse Jet Pleated bag filters are Engineered designs to fit most OEM-style Pulse-Jet baghouses. Our pulse jet pleated bag filters are cost effective alternative to fabric bags and cages. Top and bottom load designs and the life of filter is up to 2 to 3 times over fabric filter bags. Various engineered pleat geometries with Multiple construction styles. Efficiencies of up to 99.99%.

Products Specification

Product Specifications


Maximum airflow volume of up to 11,600 m³/hr.

16, 20 or 24 self-supporting pleated bags which do not require internal cages.

Operating temperatures up to 110°C.

Requires clean and dry compressed air at 6 bar gauge. Nominal required is 2nm³/hr for each 10m² filter area.

Pulse controller IP66, 230V 10W power supply.

Adjustable for both pulse duration and interval.

Product Features


Easy to install.

Easy to remove.

Prevent leakages.

Stable, and does not fall or break through the sheet.

Filter are in 2-4 times larger in compression to traditional bags.

High air to cloth ratio, and a higher dust load capacity.

Open pleat facing.

Low consumption of air during the cleaning process.

High efficiency due to surface filtration.

Reduction of down time and low maintenance cost.

Synthetic parts have no risk of pleated bag abrasion.

World famous brand filter media: 100% spun bond polyester Smooth surface of filters. Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.

Technical Data

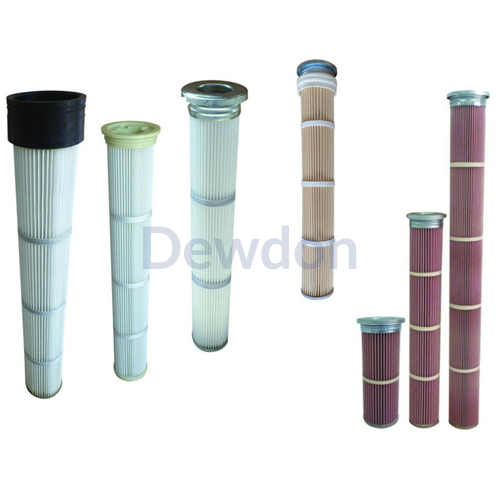

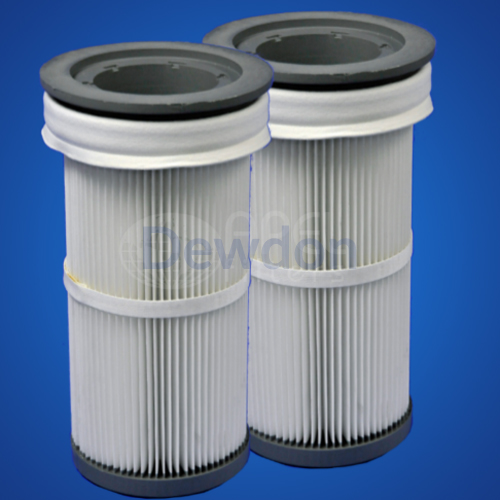

Products Show

Application

Foundry & Steel

Cement

Boilers Flue Gas

Kiln Exhaust

Solids Drying

Mining and Minerals

Glass

Particle Board Mfg

Wood-Working and laminates

Air Pollution Control Systems

Hot Gases and Fumes

Coal Handling
