Dewdon - Activated Carbon Filter Bags
All Products

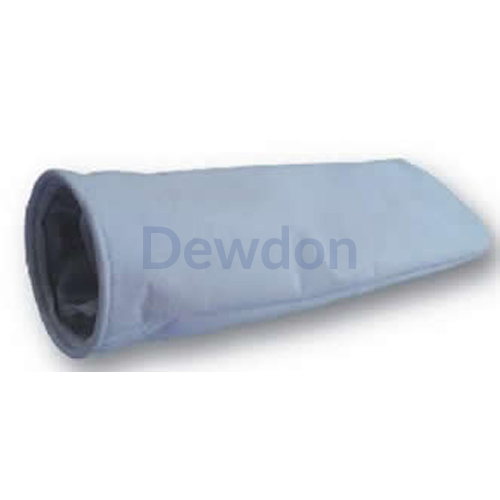

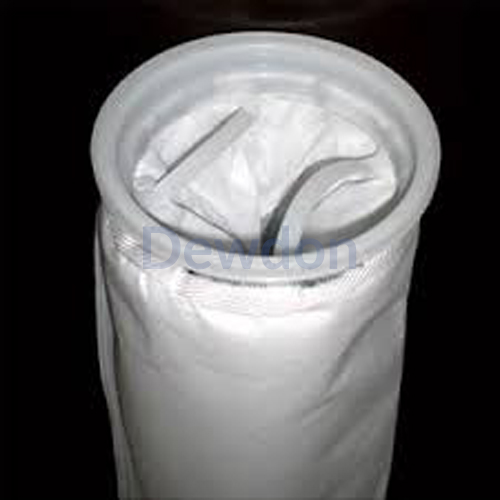

Activated Carbon Filter Bags


Activated carbon filter bags are made with activated carbon fibers which have exceptional adsorption properties for organic chemical compounds. It is generally used as a broad spectrum absorbent in many industry processes. Traditionally, activated carbon powder is mixed into a tank together with mass liquid. And then the powder will be filtrated by some additional filters. This application cause many additional cost for cleaning the tank and tubes, some products also be wasted by the too large volume equipment’s.

Product Specifications

Product Features


Broad spectrum of absorbing organic chemicals.

Promote catalytic, reduction of chlorine disinfectants.

Effective control of chlorine, taste & odor, reduction of asbestos & submicron materials, removal of mercury, lead & other types of heavy metals, and toxic organic chemicals.

Loose carbon tablets fill without using binder. 100% carbon surface exposure, low velocity and longer liquid contact time. Impurity absorption speed up to 120 times faster than conventional carbon extrusion or carbon paper filters.

Pre-washed carbon tablets, only thirty seconds pre-flush required to flush out trace carbon sheds caused by transportation motion.

Multi-task performance-impurity absorption, contaminants retention & trace oil removal.

Graded pore media structure for improved contaminant retention capacities.

Exclusively FDA compliant media. 100% free of silicon contamination.

Patented SDS & STS pressure seal rings, steel snap-fit rings.

Broad chemical compatibilities.

Free of carbon fine sheds, fiber migration & extractable release.

Recommended flow rate #1 bag @6 m3/Hr. Max., #2 bag @ 12 m3/Hr. Max. #5 bag @5.5m3/Hr. Max.

Optimum change-out pressure differential 0.12 MPa, Max. 0.25 MPa.

Technical Data

Filter Size Carbon Type Filter Media Seam Treatment Length (mm) Diameter (mm) Filter Area (m2) Volume (litre) Housing used
Size 1 Coconut shell pp Welding 420 180 0.25 8.00 HEXB23, HECB23
Size 2 Coconut shell pp Welding 820 180 0.50 17.50 HEXB45, HSTB45+
Size 5 Coconut shell pp Welding 510 150 0.25 8.00 HPPB23V, HSSB23

Products Show

Applications

These filter bags are typically used for removing trace amounts of organics, heavy metals, colors or odors from hazardous wastewater streams in industrial water filtration systems.
