Dewdon - Cylindrical Din Filter Cartridge
All Products

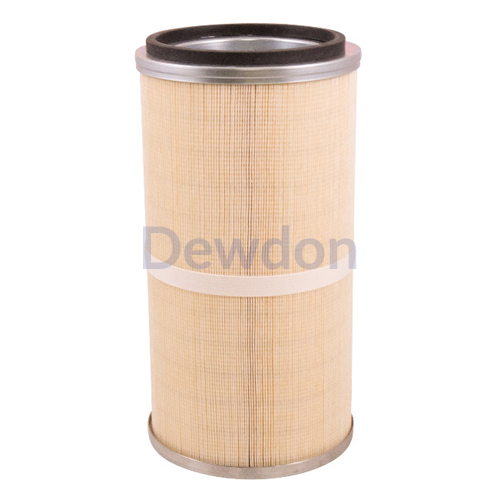

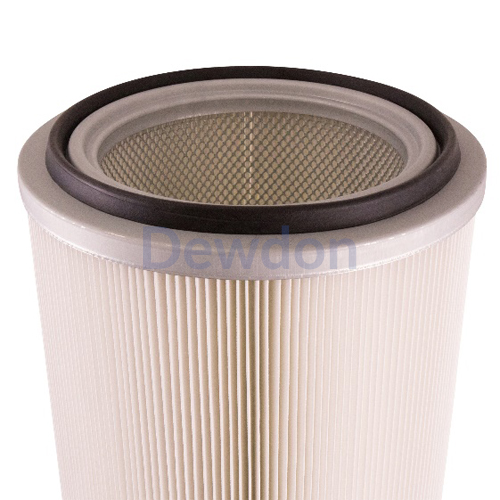

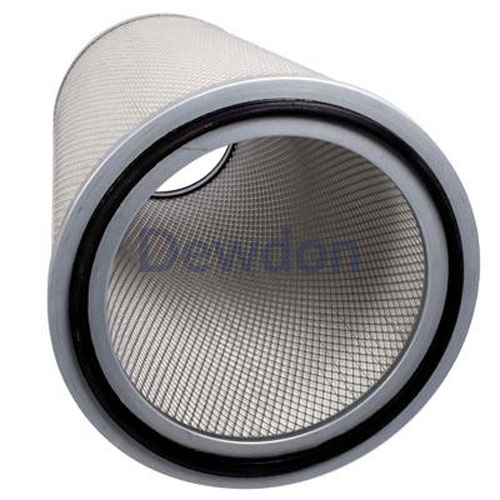

Cylindrical Din Filter Cartridge


Dewdon’s Cylindrical DIN cartridges are the most sold dust filter cartridges. This cylindrical air filter cartridge can be delivered with all our high efficiency filter media. pleated filter materials of filter can optimize your air filtration efficiency, by using pleated media VS no of pleats and pleat high. The Cylindrical DIN Filter Cartridge is used in all standard applications from shot blasting to wood dust filtration and it can be manufactured in a conductive/antistatic version suitable for operation in ATEX environment. Also, it can be supplied in a stainless steel version approved for food grade.

Products Specification

Item Material (Standard) Material (Alternative)
Top cap Galvanized steel Stainless steel, powder coated, incinerable / recyclable plastic ABS
Gasket EPDM Silicone
Inner mesh Galvanized Steel Stainless steel, powder coated, incinerable / recyclable PP spiro or galvanized helix.
Outside straps Optional Glued or ultrasonic welded Weltech straps
Bottom cap, Open/Closed Galvanized steel Stainless steel, powder coated, incinerable / recyclable plastic ABS
Filter media Can be equipped with Nordic Air Filtration's filter media selection.

Product Features


Precisely made.

Flawless design.

Top in work.

Longer service life.

High strength.

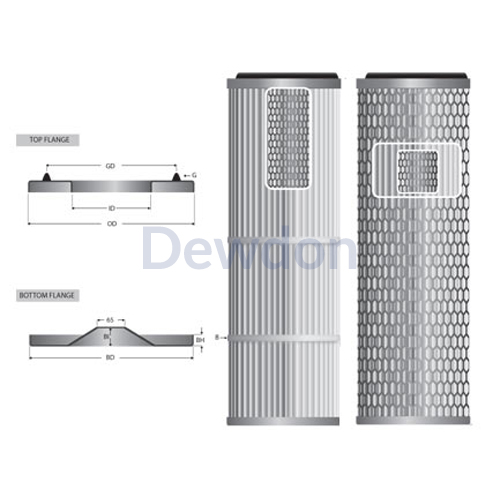

Technical Data

Products Show

Applications

The Cylindrical DIN Filter Cartridge is used in all standard applications from shot blasting to wood dust filtration and it can be manufactured in a conductive/antistatic version suitable for operation in ATEX environment. Also, it can be supplied in a stainless steel version approved for food grade.

It is suitable for air filtration of dust and fumes from cement, metal/aluminum, food & beverages, woodwork, chemicals, powder coating, plasma/laser cutting, sandblasting, textiles, welding and casting.
