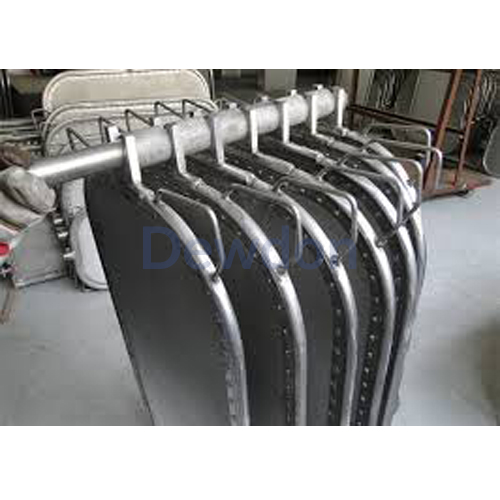

Pleated Filter Element


Pleat filter element also named stainless steel pleated filter element made of pleated stainless steel sintered fiber web and stainless steel weaving wire cloth.

Stainless steel sintered fiber felt made of stainless steel fiber by sintering in high temperature into a graded pore structure. It features high precision filtration which takes advantages of high porosity, high dirty capacity, high regeneration capacity, etc. It can be also used after chemical cleaning.

Stainless steel woven wire cloth is made of stainless steel wire using different woven ways. It features different filtration rate due to its different mesh opening and diameter. As the filter medium, it has the advantages of good strength, heat-resistance, smooth wire pore, easily washable, high temperature resistance, corrosion resistance, etc.

Pleated filter element is widely used in chemical fiber, petroleum, chemical industry, electric powder filtration.

Products Specifications

Products Specifications


Material: SS304, SS316, SS316L.

Filter precision: 1 - 300μm.

Filter efficiency: ≥95%.

Working pressure: 30Mpa.

Working temperature: ≤600°C.

Main filter media: stainless steel sintered fiber web and stainless steel wire woven cloth.

Installing form: standard (using o-ring to seal), thread, tie rod, flange, fast interface.

Instruction of Filter Element Model :-


PF - D/L - R.

PF - Pleated Filter Elements.

D - Diameter.

L - Length.

R - Filter Rating.

Technical Data

Products Show
